Suco - 0134/0135 Pressure Switch

IP67

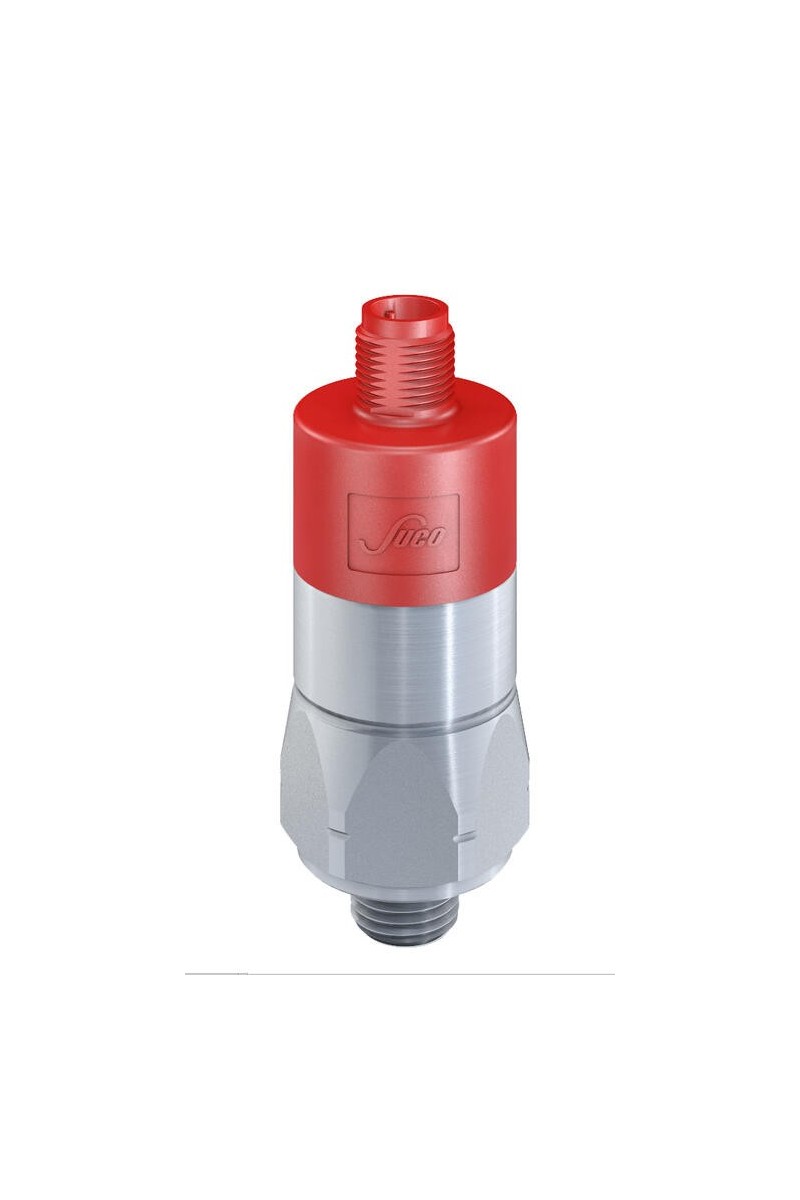

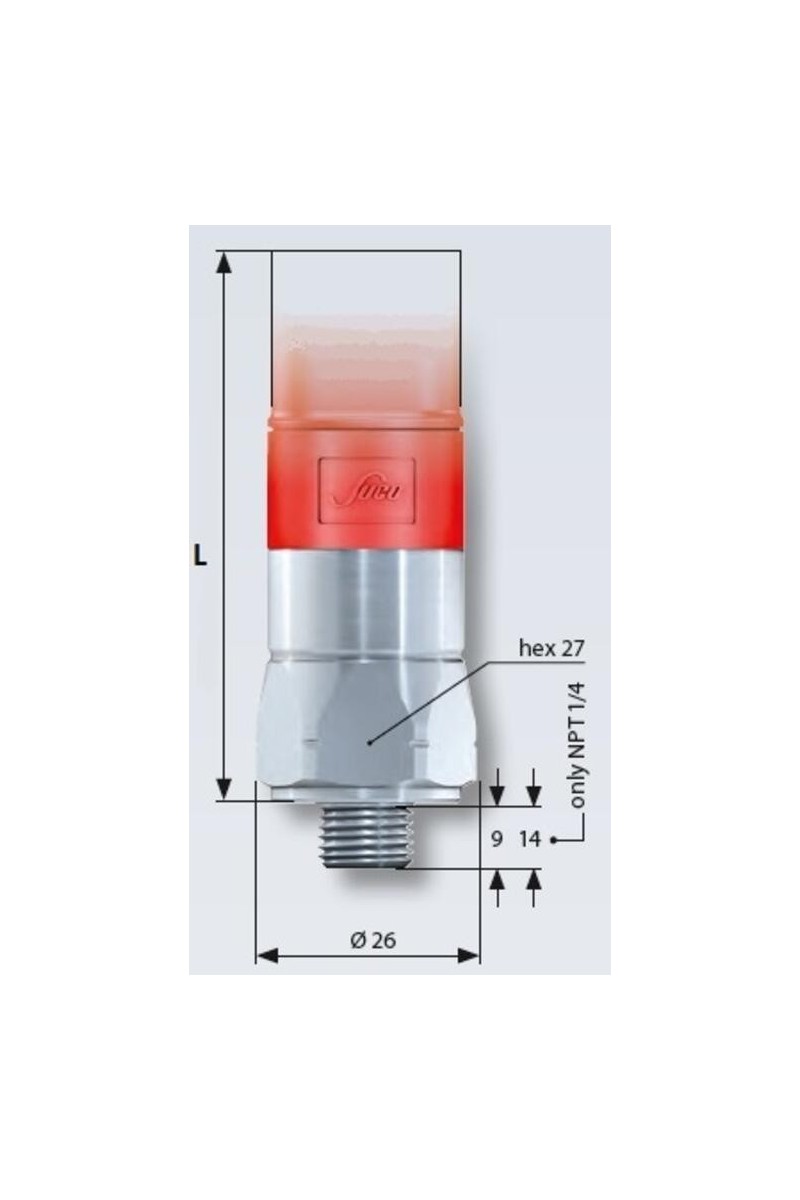

The 0134/0135 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated M12x1 connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Up to 48 V

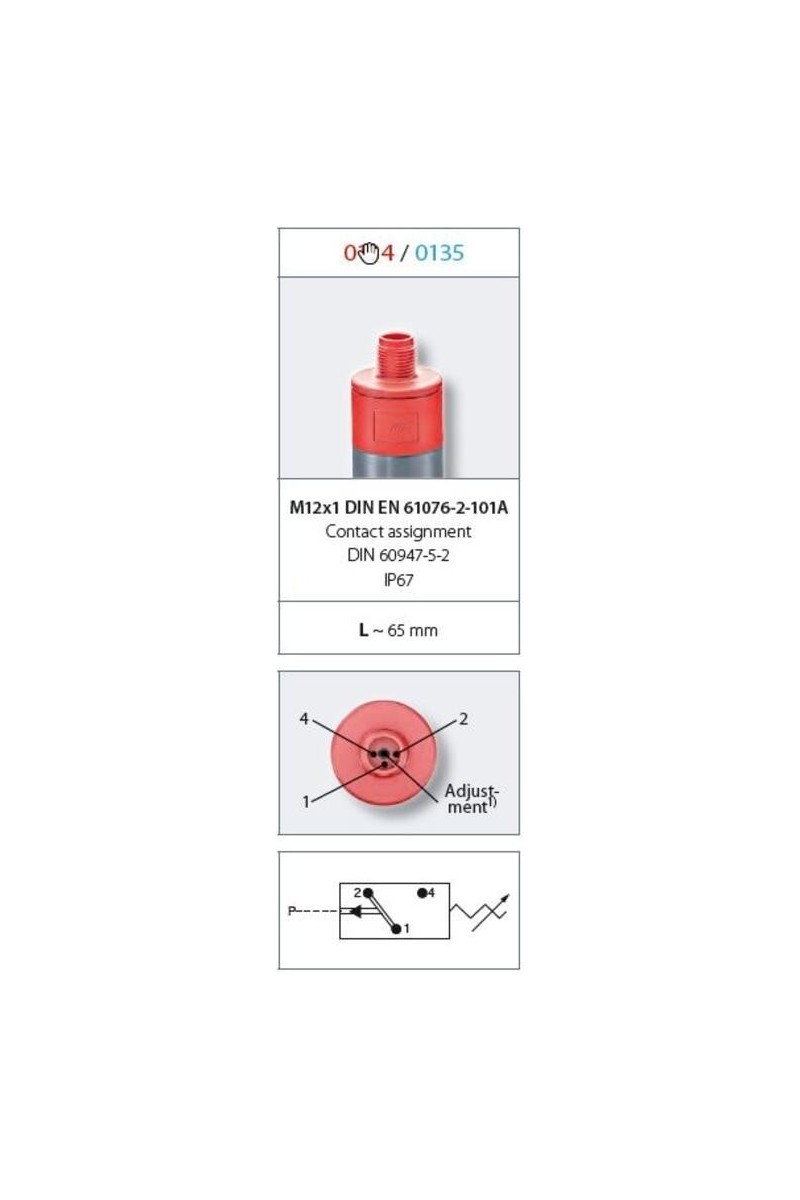

M12x1 integrated connector

Five adjustment ranges from 0,3..1,5 bar to 50..200 bar

Changeover (SPDT)

Over pressure safety from 100 bar up to 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1.5 bar
Adjustment range min 0.3 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2
Electrical connection M12
Function Changeover (SPDT)
Hysteresis 10-30% depending on set value
IP class IP67
Material membrane NBR
Material of body Zinc-plated steel
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Mechanical life expectancy 1 million exchanges
Pressure max 100 bar
Process connection 1/4 BSP
Shock resistance 294m / s²; 14 ms half sinusoidal wave; DIN EN 60068-2-27
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -30 °C
Temperature of media to 100 °C
Weight 100 g
Vibration resistance 10g: 5..200 Hz sine wave, DIN EN 60068-2-6
Voltage ac/dc max 48 V
