Suco Stainless Steel Body

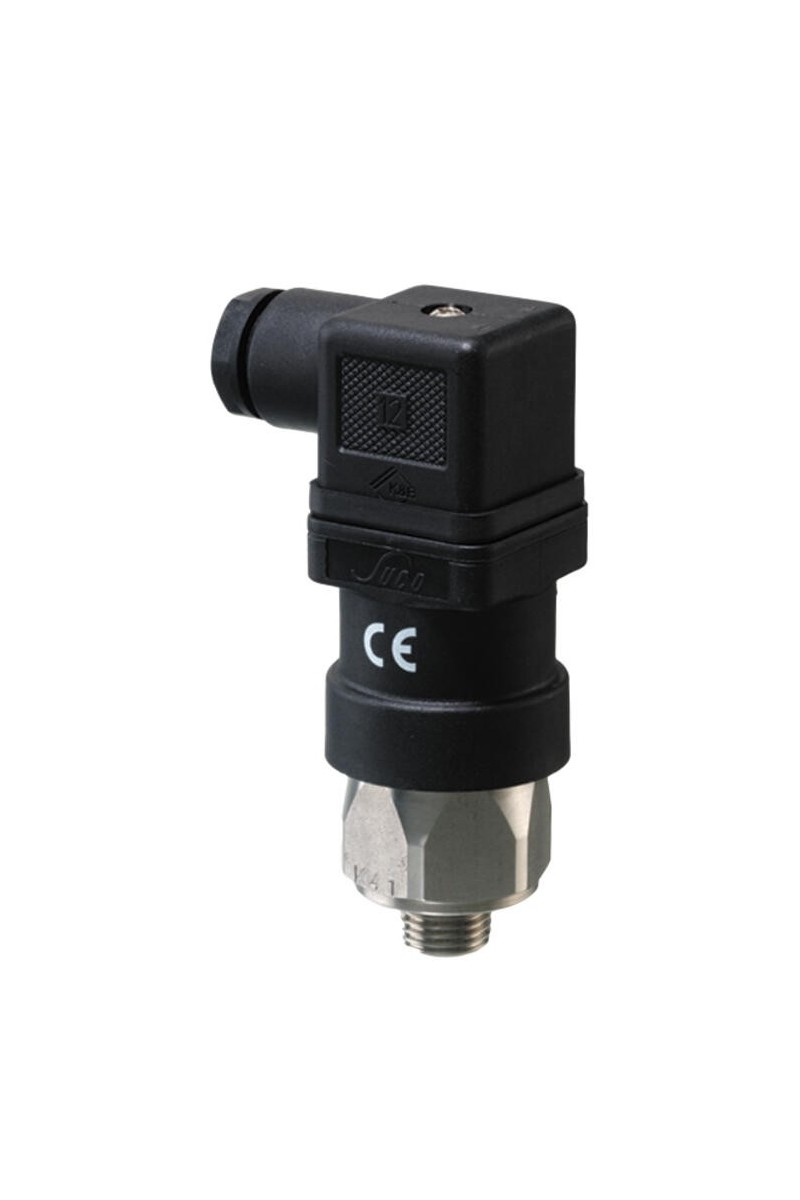

The 0184/0185 series is part of the changeover contact range from SUCO with an integrated plastic body and connector. Offering a maximum voltage of 250 V with a normally open and normally closed contact housed in a hex 27 stainless steel body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

 Common applications include power packs, mobile hydraulics, water systems, hydraulics generally and pneumatics.

Up to 250 V

Connector included (DIN 43650/Form A)

Five adjustment ranges from 0,5..5 bar to 50..200 bar

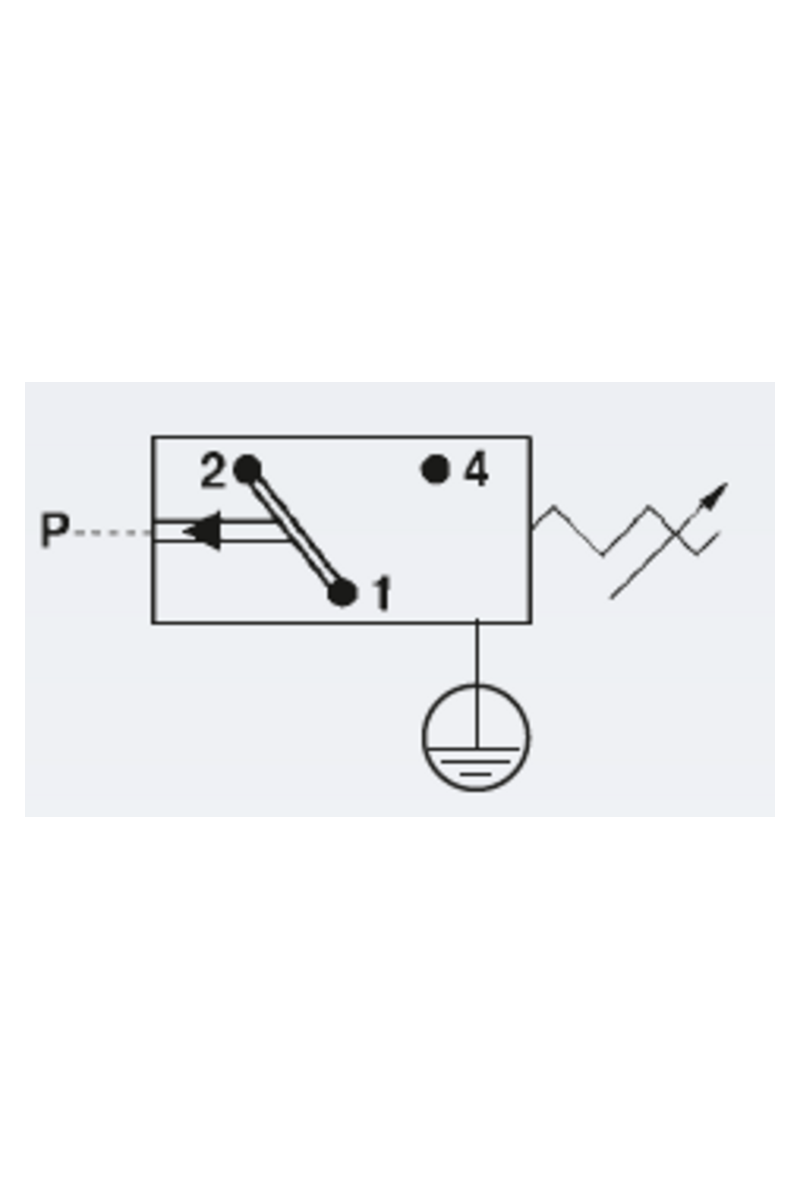

Changeover (SPDT)

Over pressure safety of 300 bar or 600 bar

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 5 bar
Adjustment range min 0.5 bar
Approvals CSA US, RoHS II
Contact load max ac 4 A
Contact load max dc 0.25 A
Deviation max ±0,2
Electrical connection DIN EN 175301-803-A
Function Changeover (SPDT)
IP class IP65
Material membrane NBR
Material of body Stainless steel
Material of wetted parts Stainless steel, NBR
Max switching frequency/min 200
Pressure max 300 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -30 °C
Temperature of media to 100 °C
Weight 130 g
Voltage ac/dc max 250 V
Voltage ac/dc min 10 V
