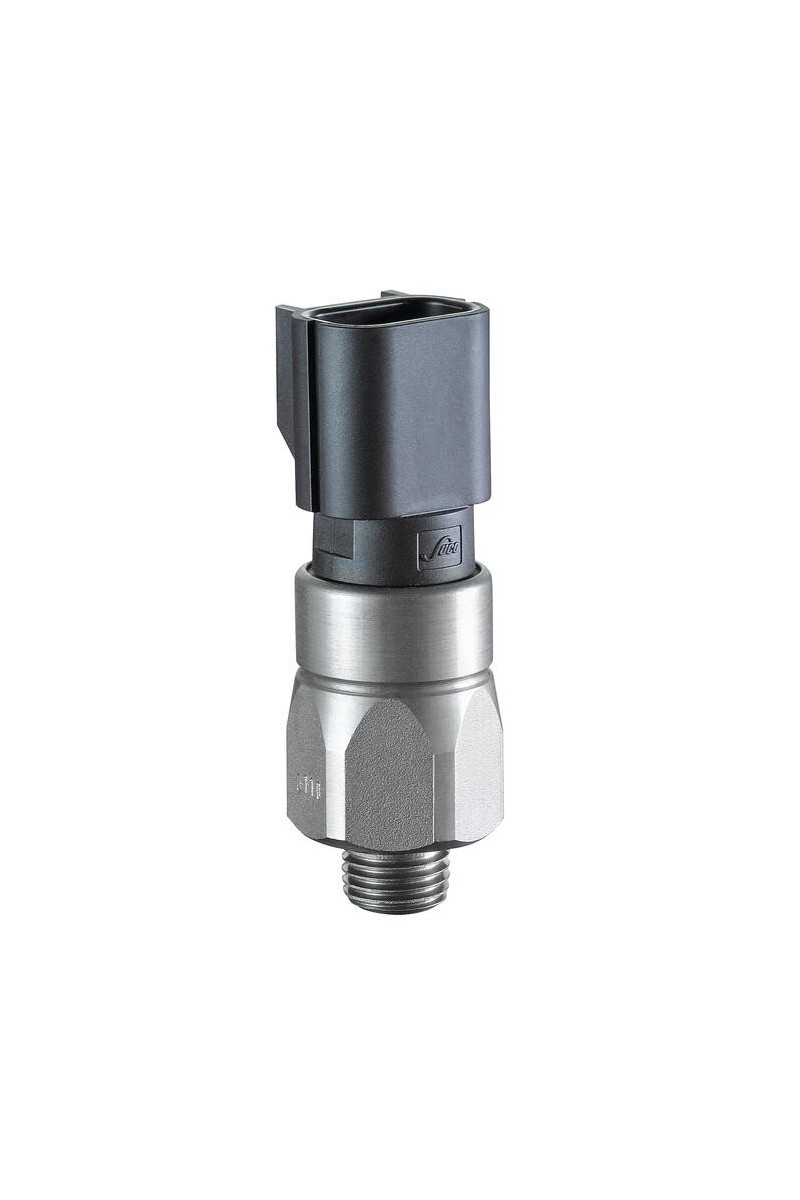

Suco - 0114/0115 Pressure Switch

IP67

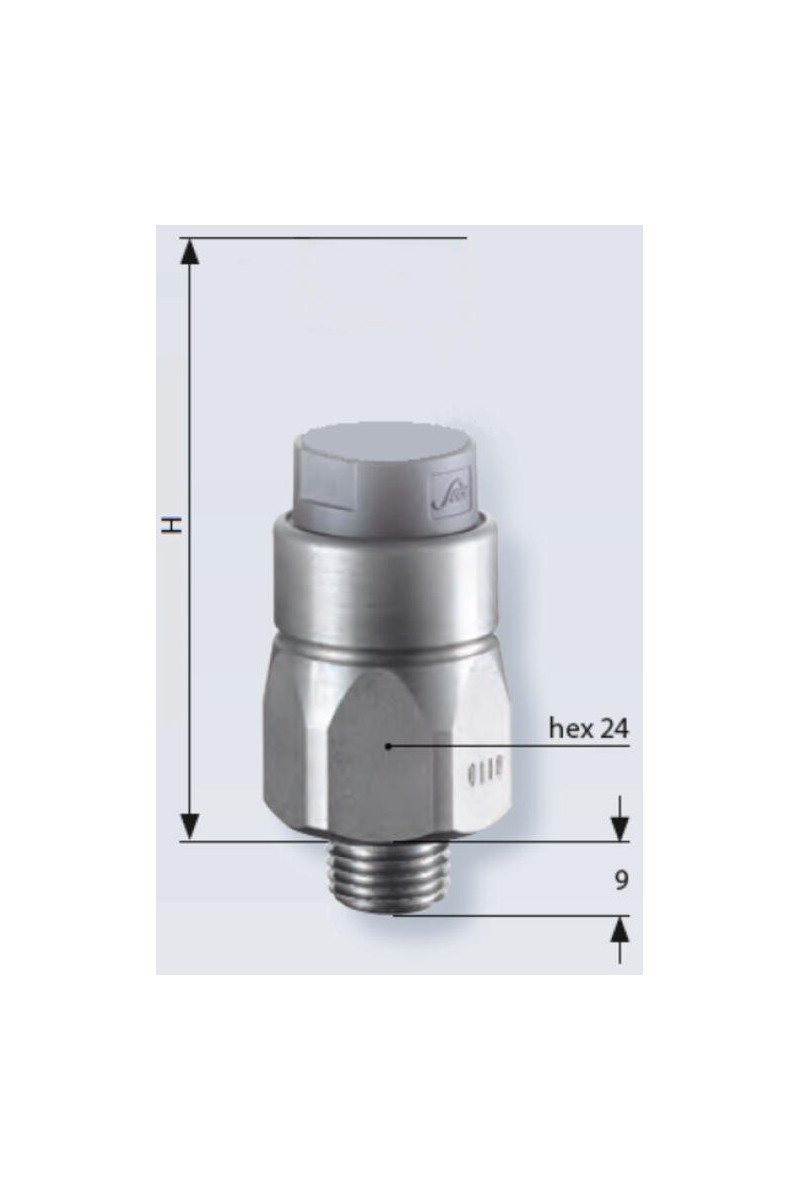

The 0114/0115 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Packard MetriPack 280® connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.

Up to 42 V

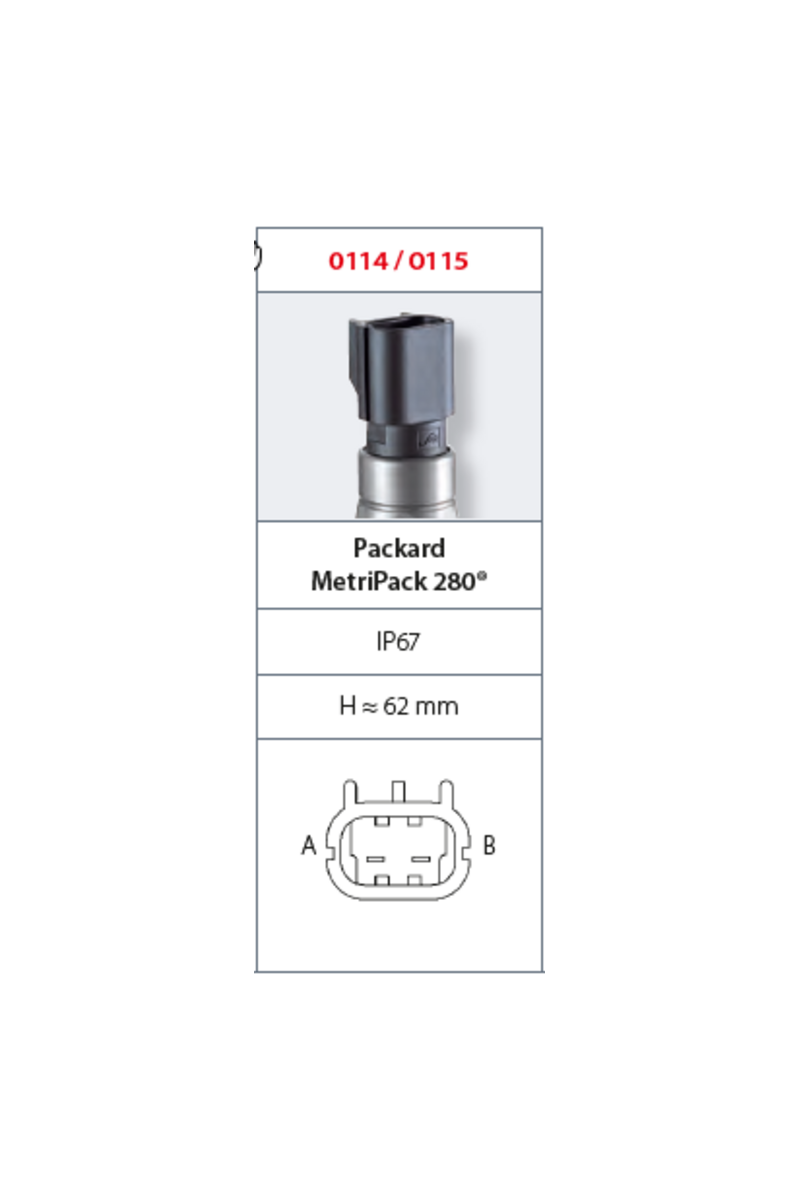

Packard MetriPack 280® integrated connector

Six adjustment ranges from 0,1..1 bar to 50..150 bar

Normally open or normally closed

Overpressure safety of 300 bar or 600 ba

£0.00
Tax included
Quantity :
Ask a Question

Adjustment range max 1 bar
Adjustment range min 0.1 bar
Approvals CSA US, RoHS II
Contact rating max 4 A
Deviation max ±0,2
Electrical connection Packard MetriPack 280
Function Normally open (SPST)
IP class IP67
Material membrane NBR
Material of body Zinc-plated steel
Material of wetted parts Zinc-plated steel, NBR
Max switching frequency/min 200
Pressure max 300 bar
Process connection 1/4 BSP
Temperature ambient from -20 °C
Temperature ambient to 80 °C
Temperature of media from -40 °C
Temperature of media to 100 °C
Weight 90 g
Voltage ac/dc max 42 V
Voltage ac/dc min 10 V
